DHSV locked open to restore access

Two Welltec® engineers in orange coveralls observe the sunset from an offshore platform in Angola during a Well Stroker (218) operation.

Well type

Oil producer

Deviation

Vertical at DHSV depth

Max temperature

131 °F / 55 °C

Max pressure

200 psi.

Background

An International Oil Company (IOC) operating in Angola faced a critical challenge with a leaking Downhole Safety Valve (DHSV) that could not be opened from the surface.  Traditional solutions like a slickline intervention were unsuitable due to potential subsequent inner diameter (ID) restriction, which would limit further operations.

The well, a vertical oil producer, operated under challenging conditions with a pressure of 200 psi and a temperature of 131°F (55°C).

A solution was urgently needed to restore well access and resume production.

Operation

Welltec was tasked with deploying a tailored intervention within a 20-day period.

Utilizing advanced tools, the operation began with the Well Miller®, equipped with a custom brush, to clear significant corrosion blocking the valve.

A Well Key® Dimple Tool was subsequently deployed to precisely deform the DHSV’s flow tube, in effect locking it open.

The process concluded with the Well Key® Friction Grip and Well Stroker®, which engaged and shifted the deformed flow tube to secure the open position.

Furthermore, the Well Tractor®, Welltec Swivel®, Release Device, and Casing Collar Locator, ensured precise, effective intervention.  Surface Read Out (SRO) data facilitated precise monitoring and control of the downhole sequence, optimizing the capture of debris and the operation’s overall success.

Achievements

The intervention restored full well access, enabling the IOC to perform the mud kill displacement, clean out the well, and resume production.

By avoiding any internal diameter restrictions, future interventions remain unhindered.  The innovative use of Welltec’s tools demonstrated exceptional engineering adaptability, saving time and costs while ensuring operational safety.

II

The design and deployment of the successful run with Welltec’s Dimple Tool & Key eliminated dependence on TRSV-specific lock open tools.

Client feedback

Products applied

Welltec Tractor tool with a metallic body, gold colored ring, and internal mechanisms for efficient downhole operations.

Well Tractor®

The original tractor with 30 years of experience

Side view of a Welltec tool featuring a metallic body with a gold-colored end piece, designed for precision downhole operations.

Well Stroker®

For actuation

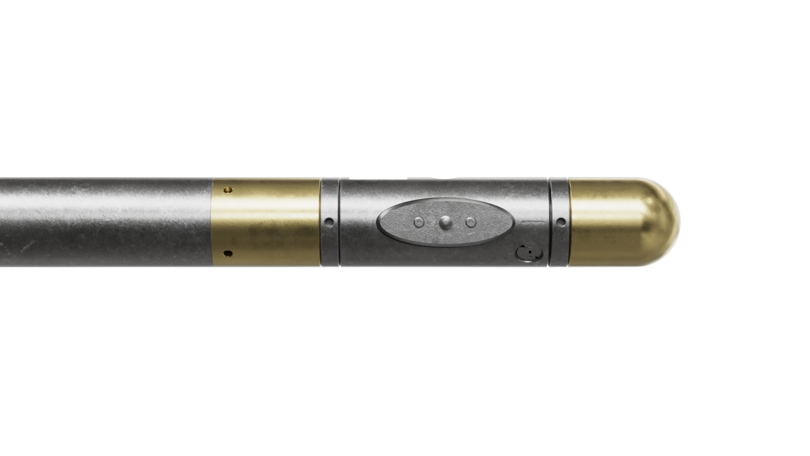

Well Key Dimple Tool with a metallic body, gold-colored sections, and dimples for enhanced downhole operations.

Well Key®

Dimple Tool

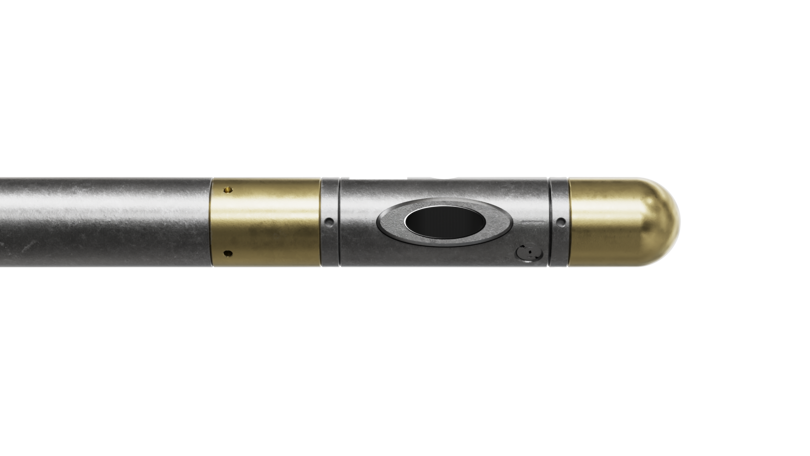

Well Key Friction Grip tool featuring a metallic body with gold-colored sections, designed for precise downhole applications.

Well Key® Friction Grip

For shifting sleeves without profiles

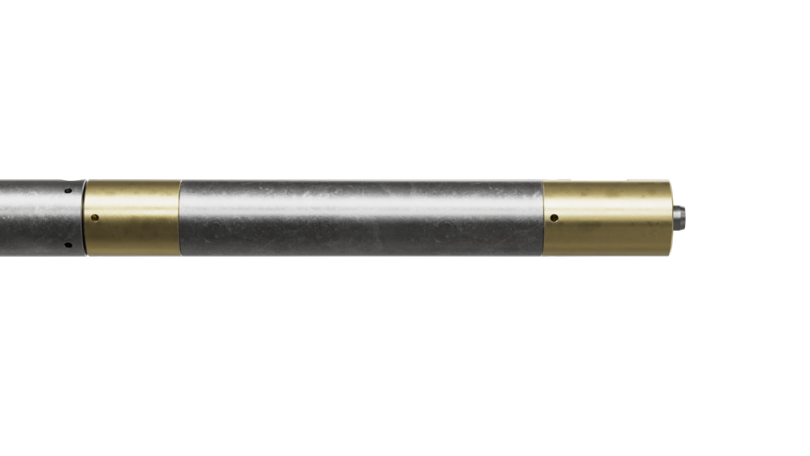

Welltec Swivel tool with a metallic body and a gold-colored section, designed for precise downhole operations.

Welltec® Swivel

Mitigate the torque

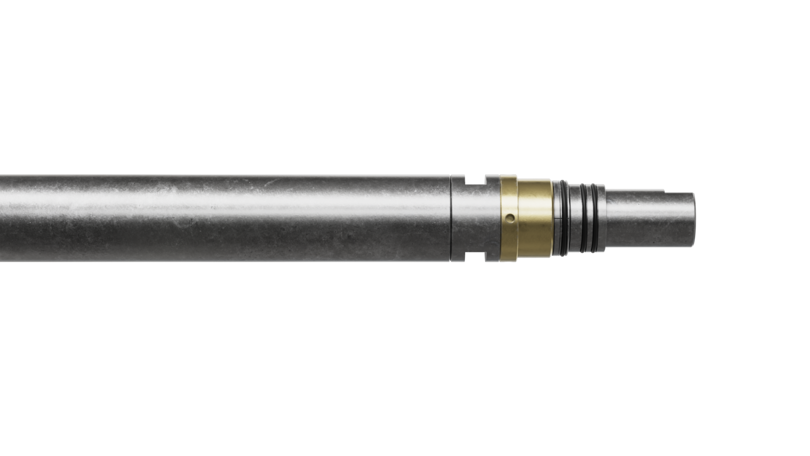

Close-up view of a Welltec tool with metallic body, gold-colored ring, and precise engineering for downhole operations.

WRD®

Welltec® Release Device

Welltec tool featuring a metallic body with a gold-colored end piece, designed for precision downhole applications.

Casing Collar Locator (CCL)

For depth correlation
