Well Key® Friction Grip

For shifting sleeves without profiles

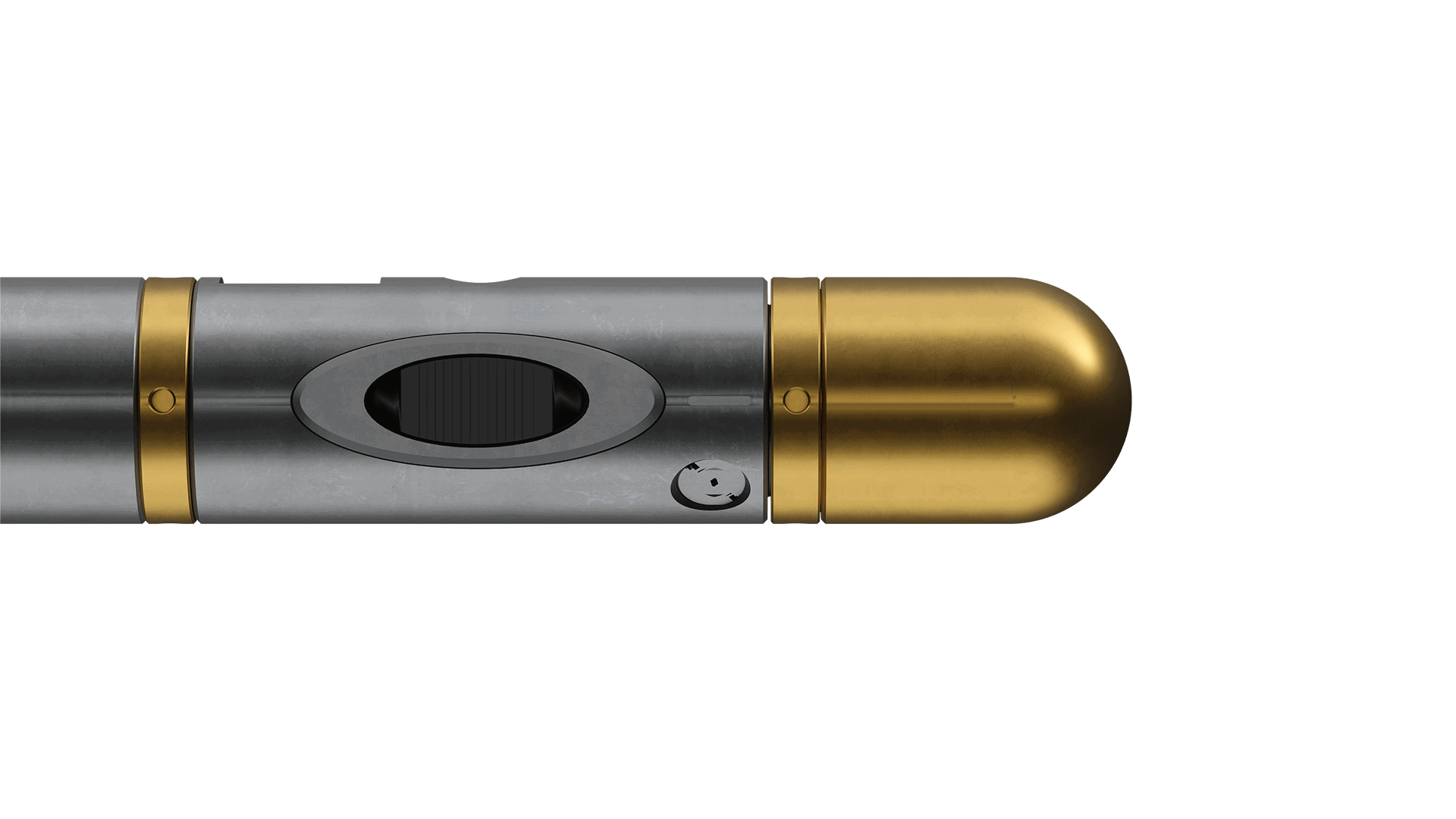

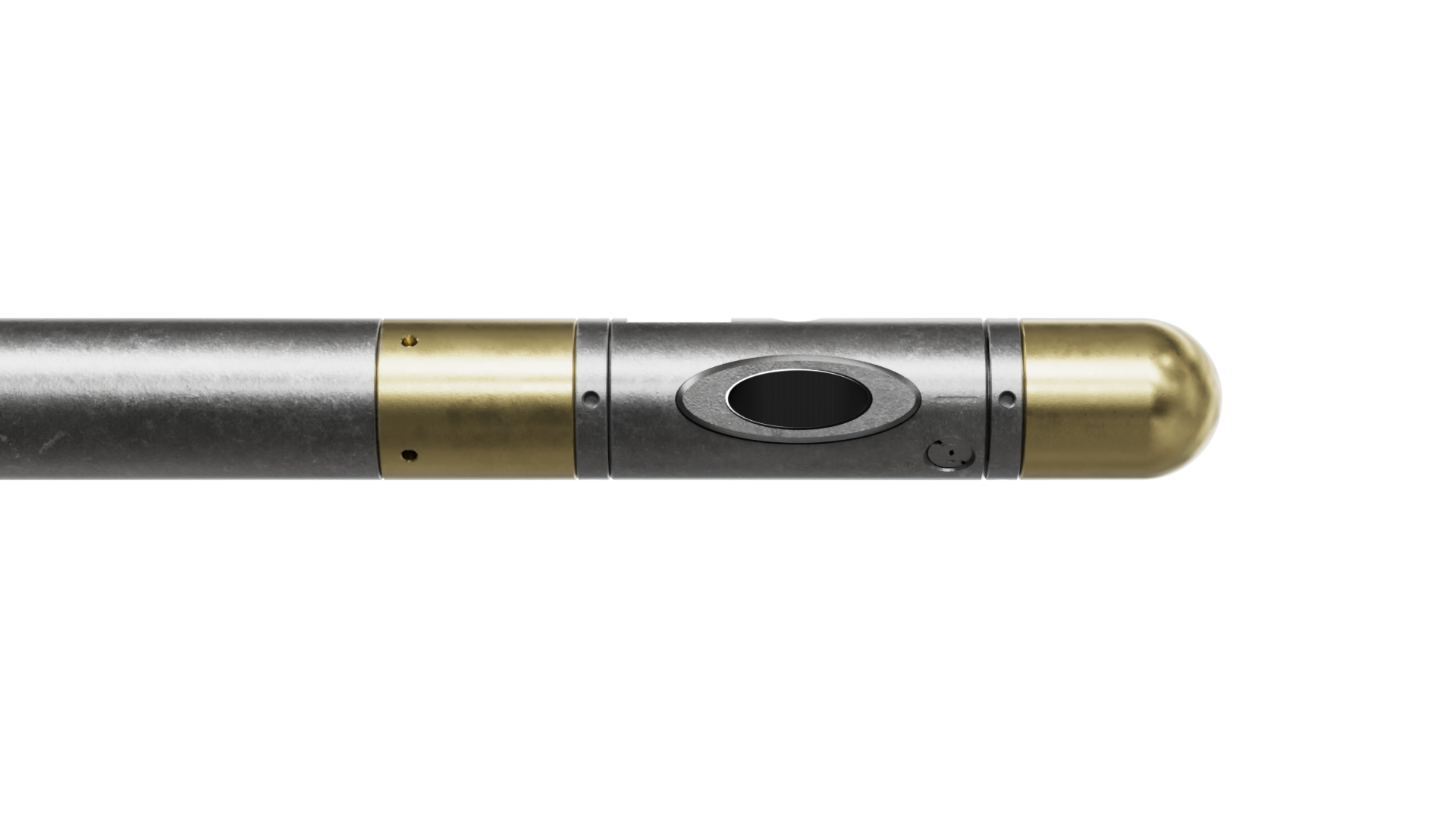

Well Key Friction Grip tool featuring a metallic body with gold-colored sections, designed for precise downhole applications.

The Well Key brings a high degree of flexibility and reliability to the well completion design as it can shift multiple sliding sleeves in a single run.

Running into the hole in a slick configuration, it is opened at depth and automatically engages with the hardware for which it was set-up for. Once engaged, the Well Stroker® provides the force to shift the hardware in the required direction.

Case Highlights

Featured case

When wells are fractured using Coiled Tubing (CT) and frac sleeves are subsequently left closed, this typically means redeployment of CT for sleeve opening 48 hours later. While this process reduces the need for post-frac clean-out, there is a risk of the CT mechanical...

The Well Key Friction Grip increases operational efficiency in completions and interventions as it has been designed to allow the shifting and manipulation of multiple sleeves within a single run.

As the key operates by creating a high friction lock which can universally adapt to multiple profiles and does not require a specific single key profile, it can therefore be used to shift several different sleeves in one run. Its active hydraulic control and high expansion ratio ensure full integrity of downhole jewellery whilst the ability to have complete control from surface also reduces operational risk by ensuring the tool is only activated once on target depth.

Challenges

Datasheet

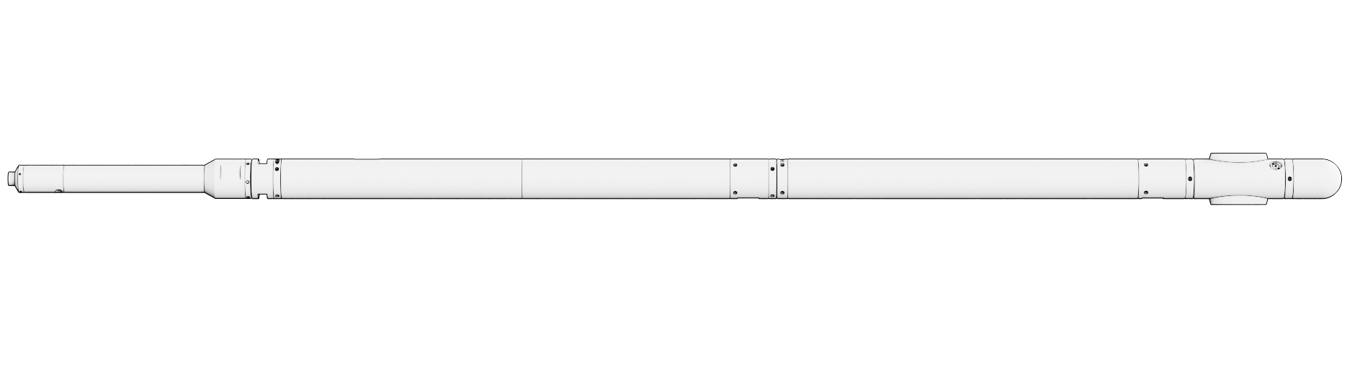

Line rendering of a Well Key tool used for mechanical manipulation tasks in downhole environments.
Applications
Shifting sleeves without profiles
Features
Allows transfer of high, controllable force
Passive fail-safe system
Rugged design allows for multiple repeated actuations
Bi-directional in same run
High expansion ratio
Ability to control position via surface read-out
Wide range of sizes
Through wiring option
Benefits
Force applied directly to target
Fewer runs
Large range of ID’s accessible
Accurate depth control
Reduced risk of damage to well hardware
Specification range*
Tool OD 2 1/8” → 3 2/5”
Length 9 ft → 12 ft
Weight in air 62 lbs → 160 lbs
Completion ID 2.4” → 6.2”
Tensile strength 30,000 lbs → 42,000 lbs
Compressive strength 30,000 lbs → 50,000 lbs
Max. well pressure 25,000 psi
Max. well temperature 302°F
* Dependent upon configuration
