Surface-controlled recovery of loose objects

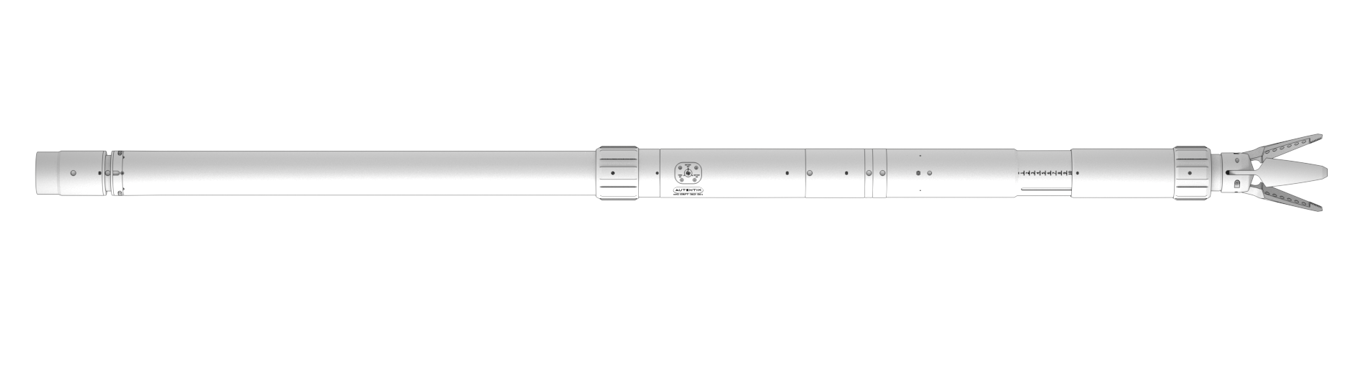

Welltec® Wellgrab CLAW is a surface-controlled, motor-driven fishing tool designed for the safe and efficient retrieval of loose, irregular-shaped objects from the wellbore. From tangled wire to dislodged components, it offers a modern, data-driven approach to resolving even the most challenging fishing operations.
What sets the CLAW apart is its ability to measure the wellbore’s inner diameter—as well as the inner and outer diameter of the target—in real time. These parameters help confirm correct placement and a secure latch before retrieval begins, reducing uncertainty and risk.
With fully repeatable actions and surface-controlled precision, the Wellgrab CLAW is the industry’s leading solution for optimizing fishing operations and minimizing downtime.
Featured case
The Wellgrab™ CLAW showcased its adaptability in a challenging North Sea fishing operation, providing live measurement readings to confirm successful latching by corresponding to the outer diameter of lightweight, tightly curled cable. Deployed via the Well Tractor®, the CLAW confirmed engagement through force signatures and accelerometer data, with the operation completed in three planned runs. The intervention restored production after four months of downtime and eliminated the need for a costly workover.
| Applications |
| Retrieval of loose wellbore items |
| Fishing operations |
| Relocating downhole assemblies |
| Measuring ID/OD of objects |
| Surface-controlled manipulation of downhole components |
| Features |
| Precise and controlled gripping mechanism for secure retrieval of loose items |
| Simple change-out grapples |
| 6-ton release power capacity |
| Electrical engagement and release on command |
| Adjustable reach |
| Fail-safe timer release device |
| Benefits |
| Enhanced retrieval success |
| 50% higher safe working loads than for standard pulling tools |
| Digital, real-time communication with fishing tool |
| Operates on any e-line via DC |
| Reduces operational complexity |
| Adaptable to various well sizes, environments, and retrieval scenarios |
| Specifications | |
| Length* | 6.06 ft → 8.33 ft |
| Weight in air* | 45 lbs → 150 lbs |
| Tool running OD | 2.125" → 3.622" |
| Claw range* | 0 → 7.687” |
| Max gripping force (claw) | 1,400 lbs |
| Max push force | 10,000 lbs |
| Max pull force | 13,000 lbs |
| Pressure rating | 10,000 psi |
| Max temperature rating* | 350°F |
| * Dependent upon configuration and can be custom designed to different sizes |
