Welltec® Setting Tool

For safe plug or packer setting

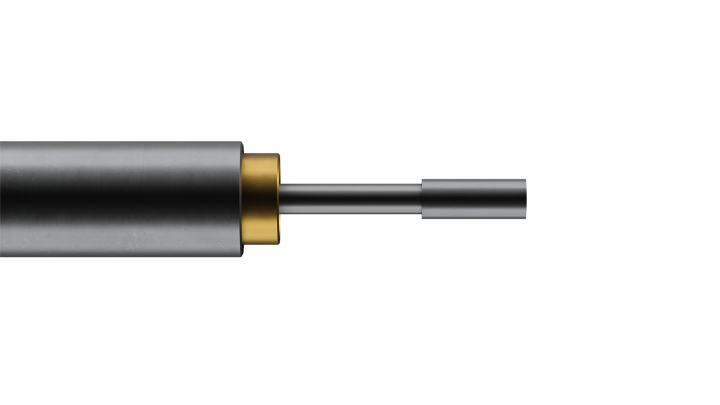

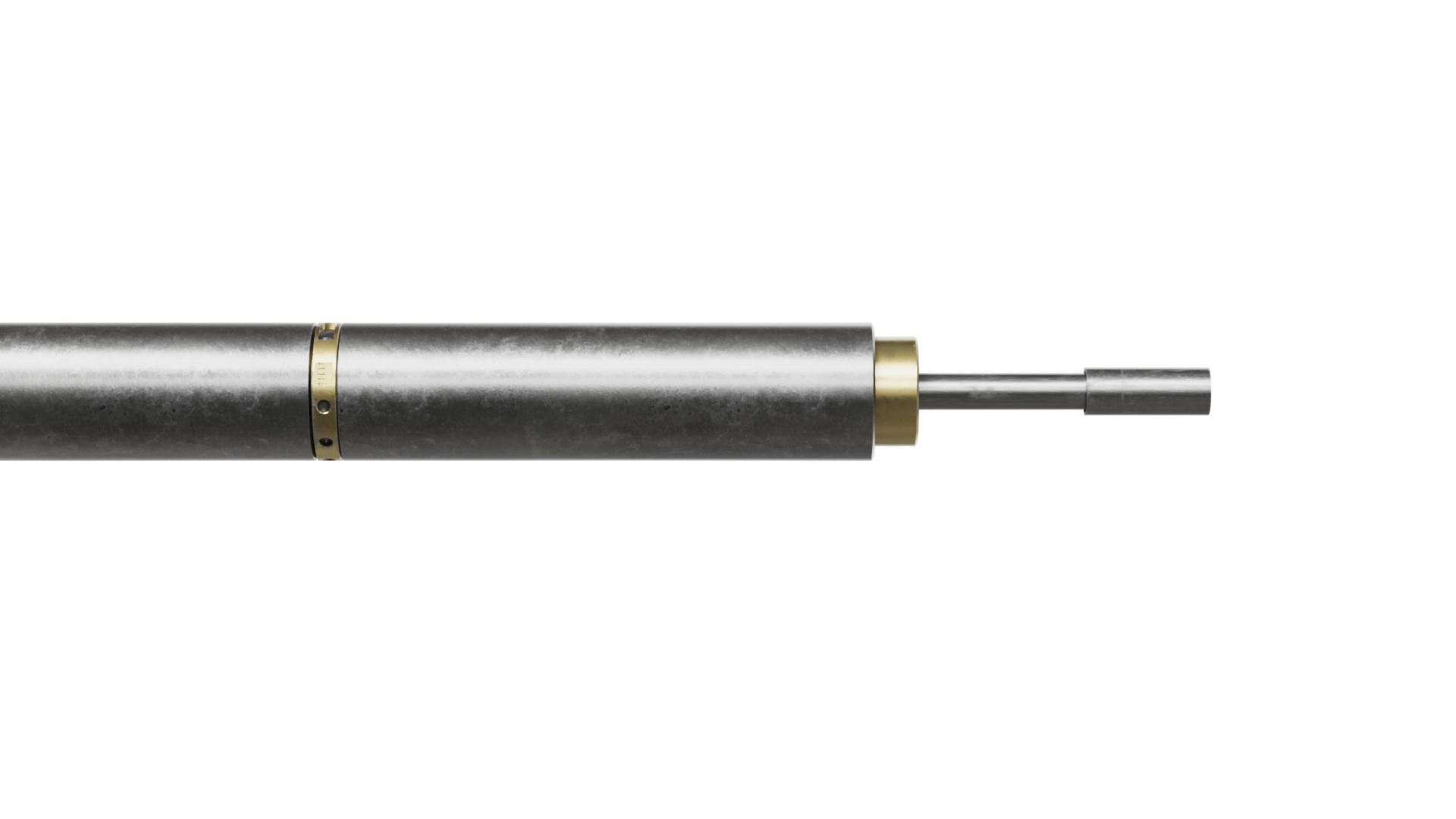

Welltec Setting Tool 1920X1080 (3)

Designed to set plugs downhole on e-line by providing up to 55,000 lbs of force without the use of explosives.

The Welltec Setting Tool offers a controlled expansion allowing the elements of the plug to adjust during the process. As no explosives are needed, the tool offers both a safe and time-efficient approach to plug setting. An added benefit is surface read-out to provide real-time unique knowledge of the job.

Case Highlights

The Welltec Setting Tool enables efficient, safe plug or packer setting without the use of explosives.

Utilizing a fast, stroker based technique rather explosives or hydrostatic well pressure, the Welltec Setting Tool can set and retrieve a plug multiple times during one run, resulting in significant rig time savings. It can be run independently or combined with the Well Tractor® in highly deviated or horizontal wells.

Challenges

Datasheet

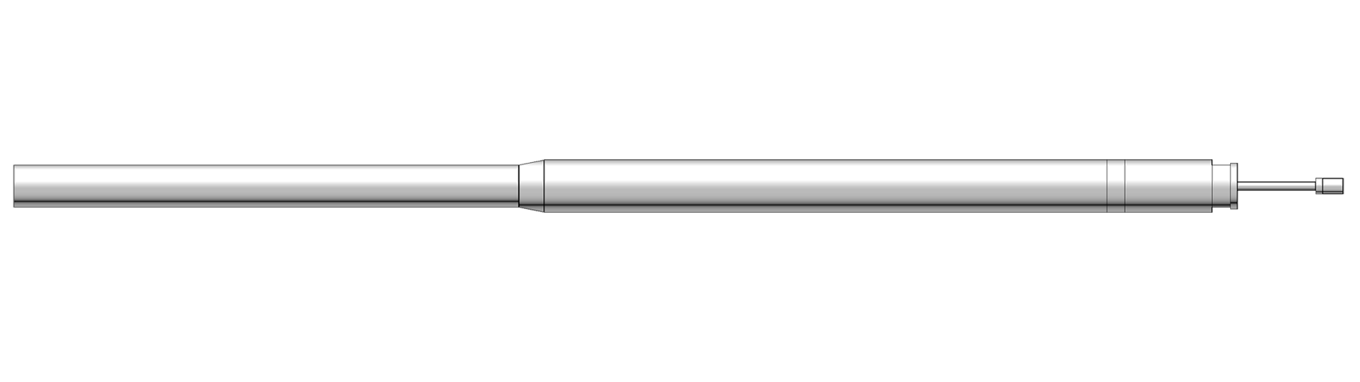

Welltec Setting Tool Hori
Applications
Plug setting
Packer setting
Well testing
Features
Controlled force
Bi-directional
Integrated fail safe mechanism
Well tractor compatible
E-line conveyed
Force and piston distance read out
Benefits
Explosion free plug/packer setting and retrieval
Increased safety
Improved operational efficiency
Multiple setting operation in same run
No limitations due to depth
Accurate depth control
Surface read out capabilities
Not affected by temporary power loss
Plug setting documentation
Specification Range*
Tool OD 3 7/8”
Length 15.1 ft
Weight in air 250 lbs
Min. Completion ID 4.00”
Max. well pressure 25,000 psi
Max. well temperature 302°F
Tensile strength 42,000 lbs
Compressive strength 42,000 lbs
Max force delivered 55,000 lbs
Max. stroke length 14”
Running tool/plug connection 2.00”
Setting sleeve connection 3.5” Baker #10 and #20 or equivalent
* Dependent upon configuration
