Dimple Tool

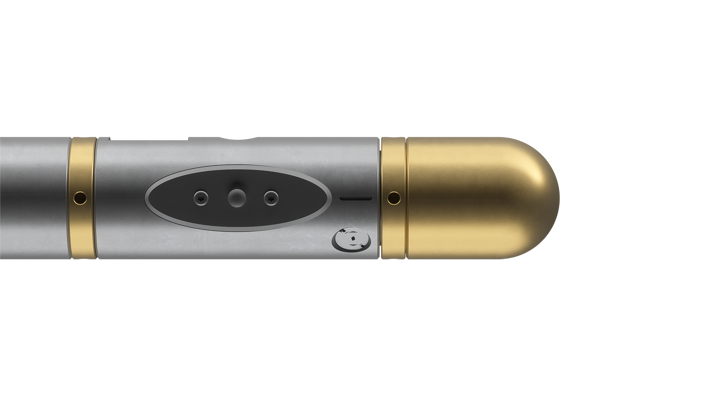

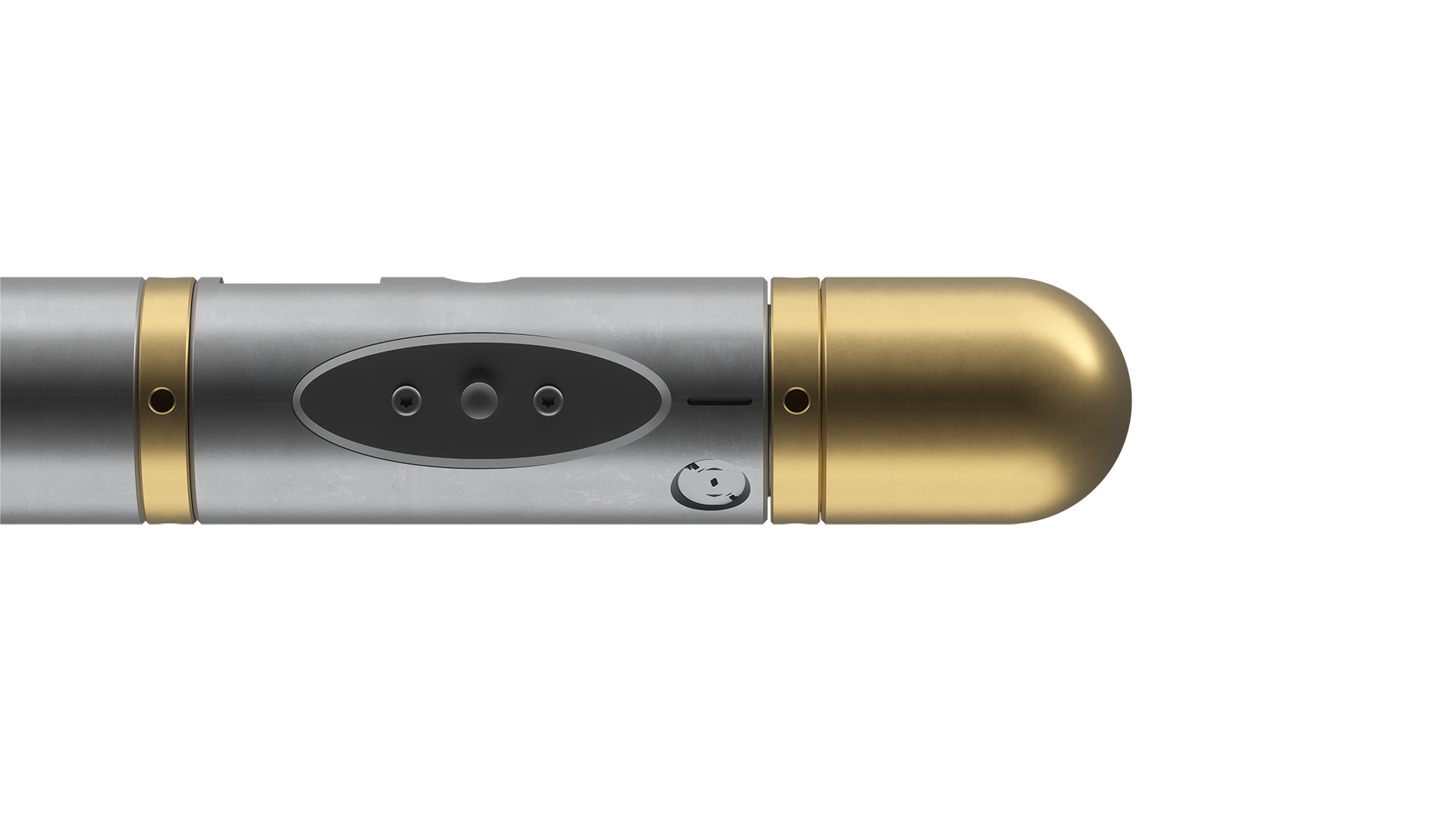

Well Key Dimple Tool is designed to permanently lock open surface controlled subsurface safety valves in a single run.

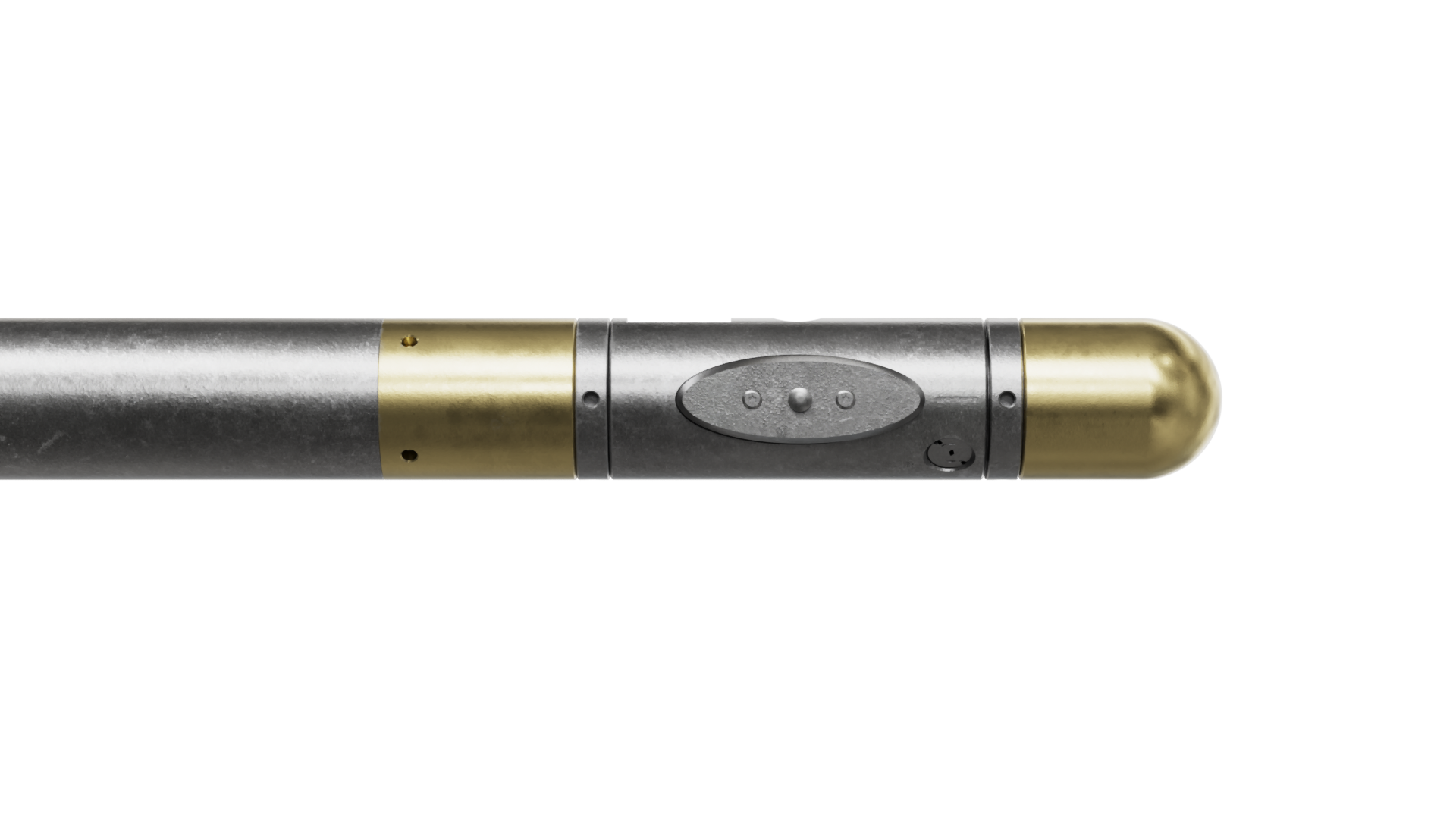

With pinpoint accuracy, the Well Key Dimple Tool deforms the sleeve by making “dimples” in its surface, thus locking the sleeve in a fixed open position.
Featured case
An operator experienced several faulty subsurface safety valves in offshore Denmark wells. Specifically, they experienced problems locking open 5-1/2” downhole...
Well Key Dimple Tool is designed to permanently lock open surface controlled subsurface safety valves in a single run.
With pinpoint accuracy, the Well Key Dimple Tool deforms the sleeve by making “dimples” in its surface, thus locking the sleeve in a fixed open position.
Its active hydraulic control and high expansion ratio ensures full integrity of downhole jewelry and reduced risk since the Well Key Dimple Tool is only opened when the tool reaches target depth.
| Applications |
| Locking SCSSSV sleeves in position via flow tube deformation |
| Downhole hardware |
| Features |
| Applies high, controllable force directly to the target |
| Surface-controlled dimpling with real-time monitoring via SRO2 |
| High expansion ratio for broad ID compatibility |
| NACE compliant materials |
| Rugged design for repeated actuations |
| Benefits |
| Precise and reliable sleeve locking |
| Fewer runs, reducing time and operational costs |
| Minimized risk of damage to well hardware |
| No jarring required, improving safety and control |
| Custom-designed for specific valves |
| Operates on any e-line via DC |
| Specification range* | |
| Length | 9 ft → 12 ft |
| Running OD nominal | 2 1/8” → 3 2/5” |
| Weight in air | 62 lbs → 220 lbs |
| Completion ID | 2.4” → 6.2” |
| Max. well pressure | 20,000 psi → 25,000 psi |
| Max. well temperature | 302°F |
| Tensile strength | 30,000 lbs → 45,000 lbs |
| Compressive strength | 30,000 lbs → 50,000 lbs |
| * | Dependent upon configuration |
