Reliable sealing and adaptable deployment

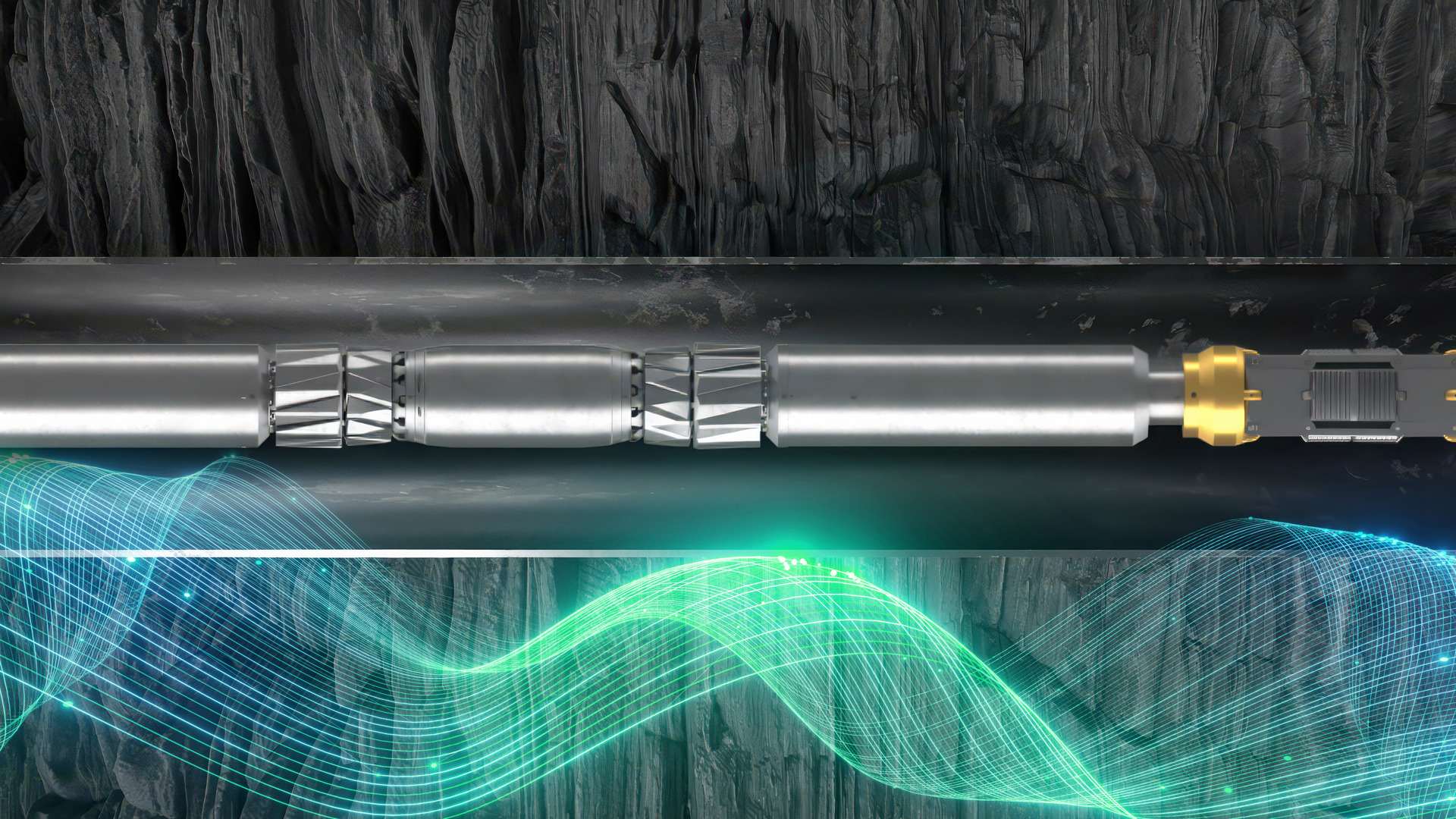

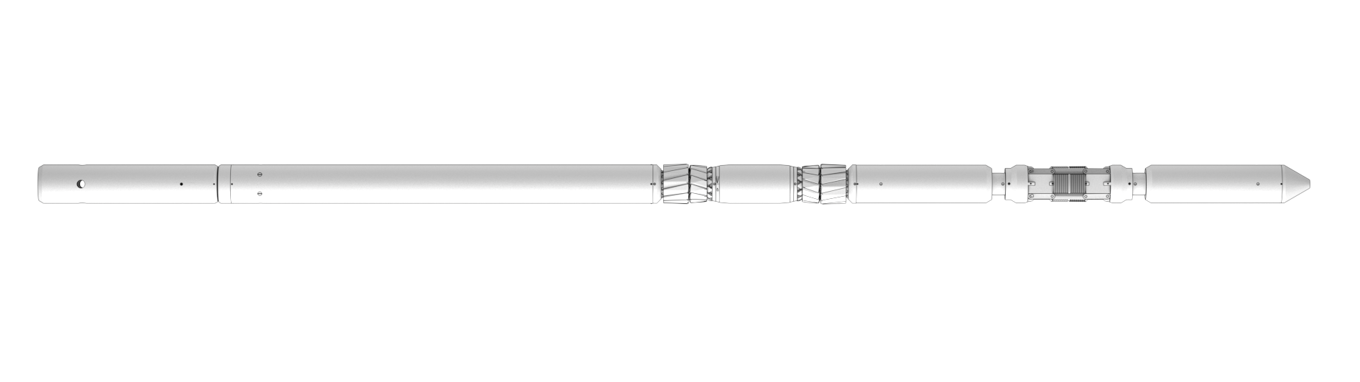

The Welltec® HEX Plug 5.5 is a high-expansion, retrievable bridge plug engineered for deployment via wireline or slickline. Designed to pass through narrow wellbore restrictions and set securely in larger internal diameters, it provides a robust, rigless solution for zonal isolation, well integrity, and temporary or permanent barriers.
Its compact running OD — smaller than 3"— enables access through tight profiles where conventional plugs cannot pass, offering a distinct advantage over competitors. The plug is mechanically set, eliminating the need for explosives and enhancing operational safety and control. The HEX Plug is available in V0-rated configurations, qualified to ISO 14310 standards, ensuring gas-tight sealing performance for critical well integrity applications
Featured case
See how the High Expansion Plug secured a difficult well section, providing precise sealing where it mattered most.
| Applications |
| Water shut-off |
| Zonal isolation |
| P&A operations |
| Features |
| High-expansion design |
| Surface-controlled setting |
| Bi-directional sealing |
| Benefits |
| Compact OD (<3") for navigating tight wellbore geometries |
| Compatible wireline and slickline deployment for versatile intervention options |
| Rigless operation |
| V0-rated sealing for high-pressure, high-risk environments |
| Specifications | |
| Tool OD | 2.80” |
| Tool length | 7.7ft |
| Tool weight | 50Kg |
| Casing size range | 5.5" 17lbs/ft -26lbs/ft |
| Tensile strength | 357 kN |
| Compressive strength | 133kN |
| Max setting force | 111 kN |
| Setting diameter | 4.55–5.00” |
| Max well temperature | 230°F |
| Max well pressure | 1378 bar |
| Max differential pressure | 28 MPa |
| GS Pulling tools size | 2.5 |
| Disconnect type/size | Baker E4 #10 |
| Qualification grade | ISO 14310 V0* |
| * NACE 0175 optional |
